2026 RawMaxx LPX 14' x 83"- RM29864
Get in Touch
Description

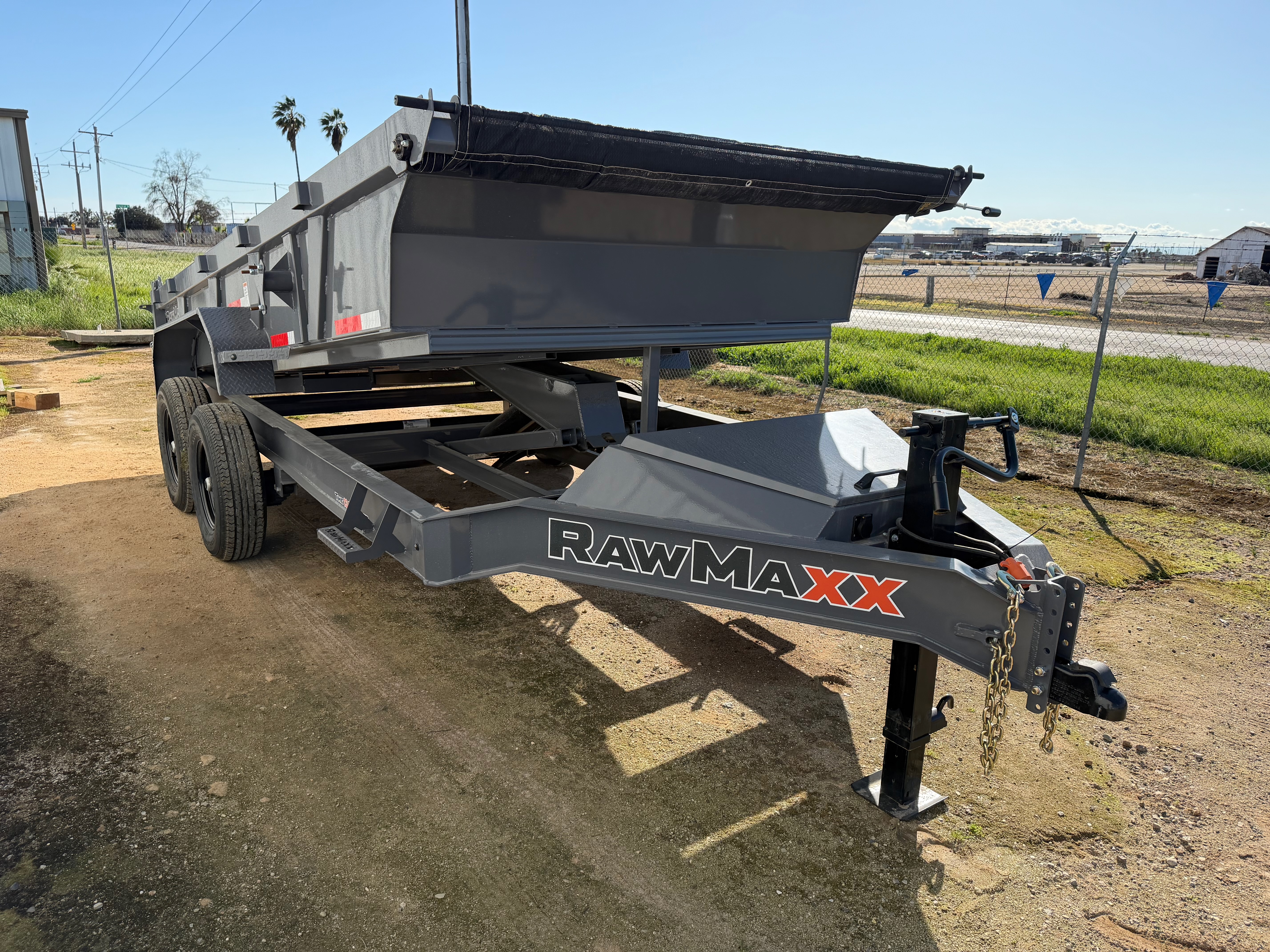

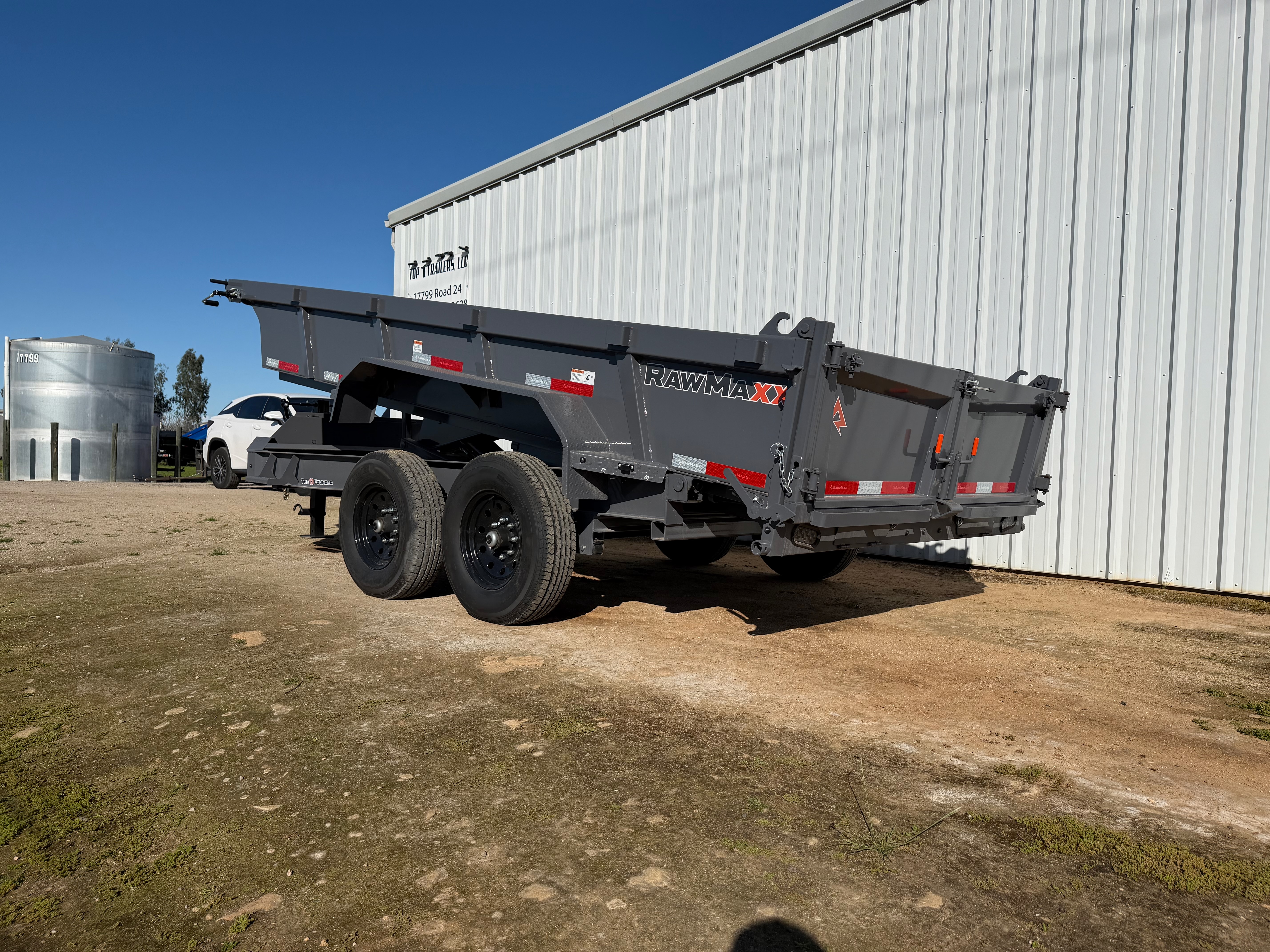

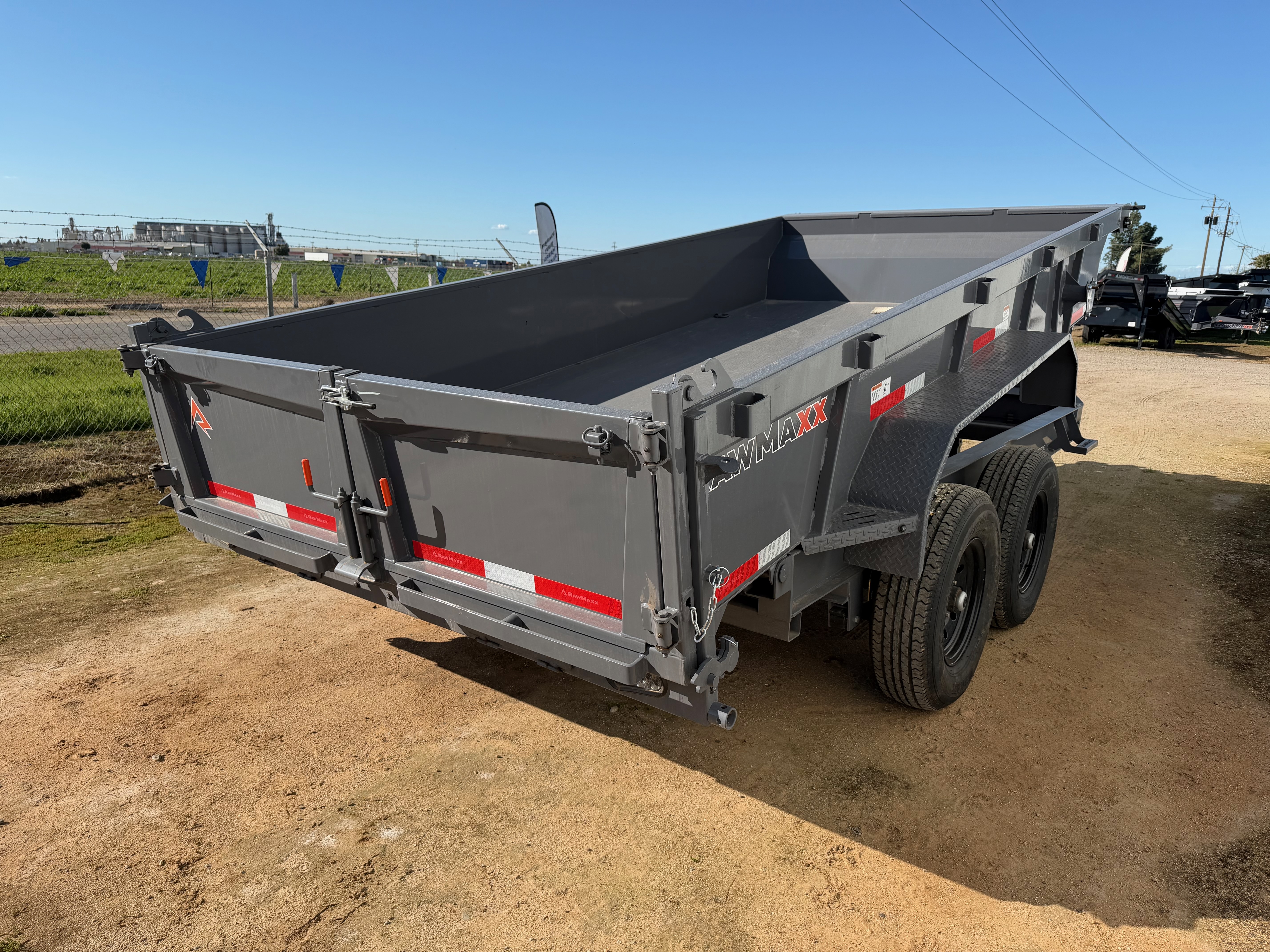

2026 RawMaxx LPX 14' x 83"
LPX
The LPX dump trailer, a reliable and sturdy option for hauling heavy loads. With its 5′ x 5″ x 3/8″ angle type tilt frame and 3″ channel cross-members with 16″ spacings, this trailer can handle even the toughest jobs. The scissor lift system, powered by a KTI 12V hydraulic pump, provides smooth and easy operation. The trailer’s safety features, including 3/8″ G70 safety chains and DOT-approved LED lights, ensure the safety of both the driver and other vehicles on the road. The 3-1 spreader gate with EZ slam door latches makes loading and unloading a breeze, while the 6′ slide-in channel ramps allow for easy access. The LPX also includes a convenient tongue tool box and stake pockets for extensions, adding to its versatility. With a manual tarp kit and a spare tire mount located on the right side, this trailer is ready for any job.
Dealer Notes
7X14 14K DUMP TRAILER, 22" WALLS

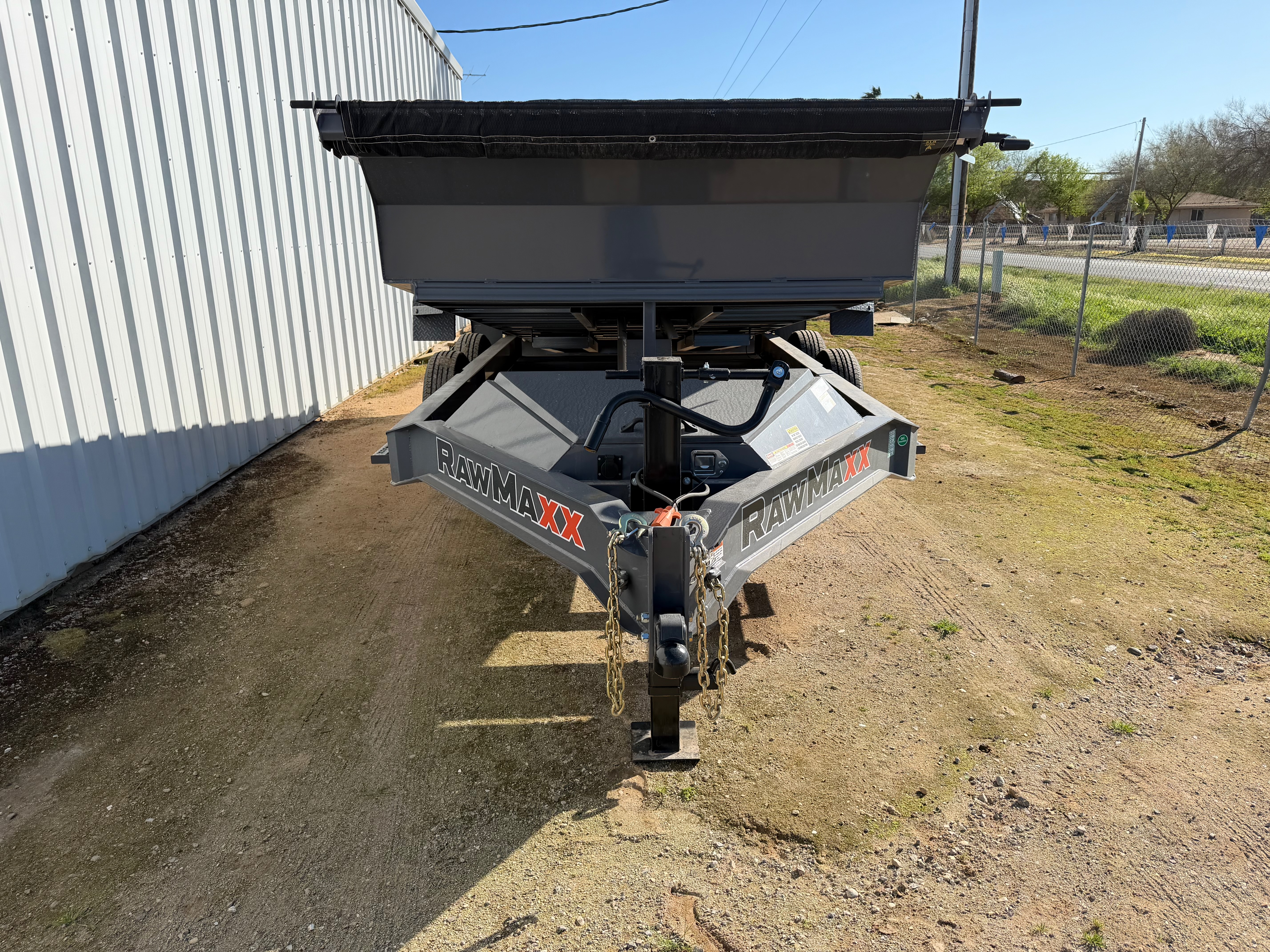

- 2 5/16 Ball Adjustable Coupler

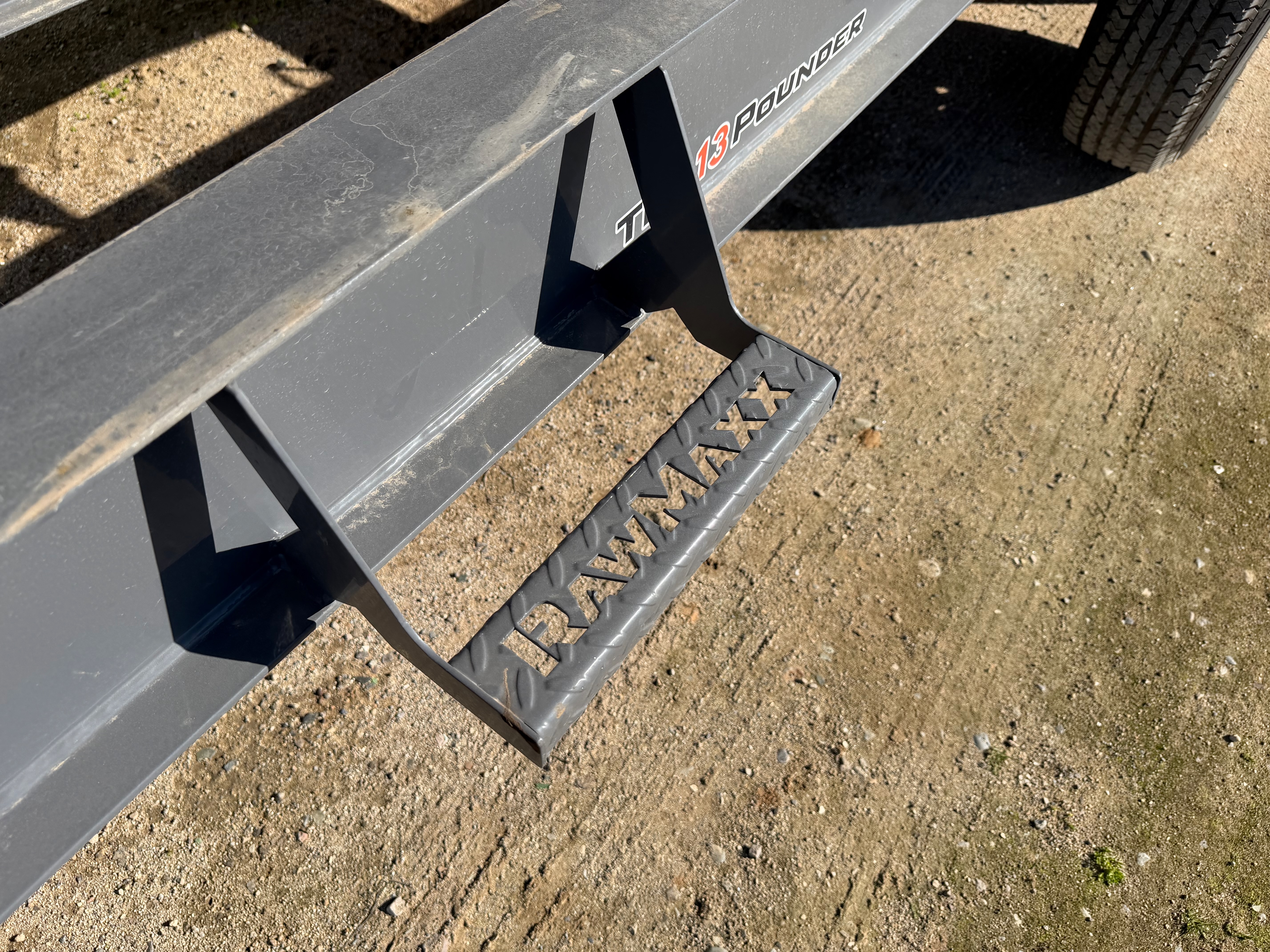

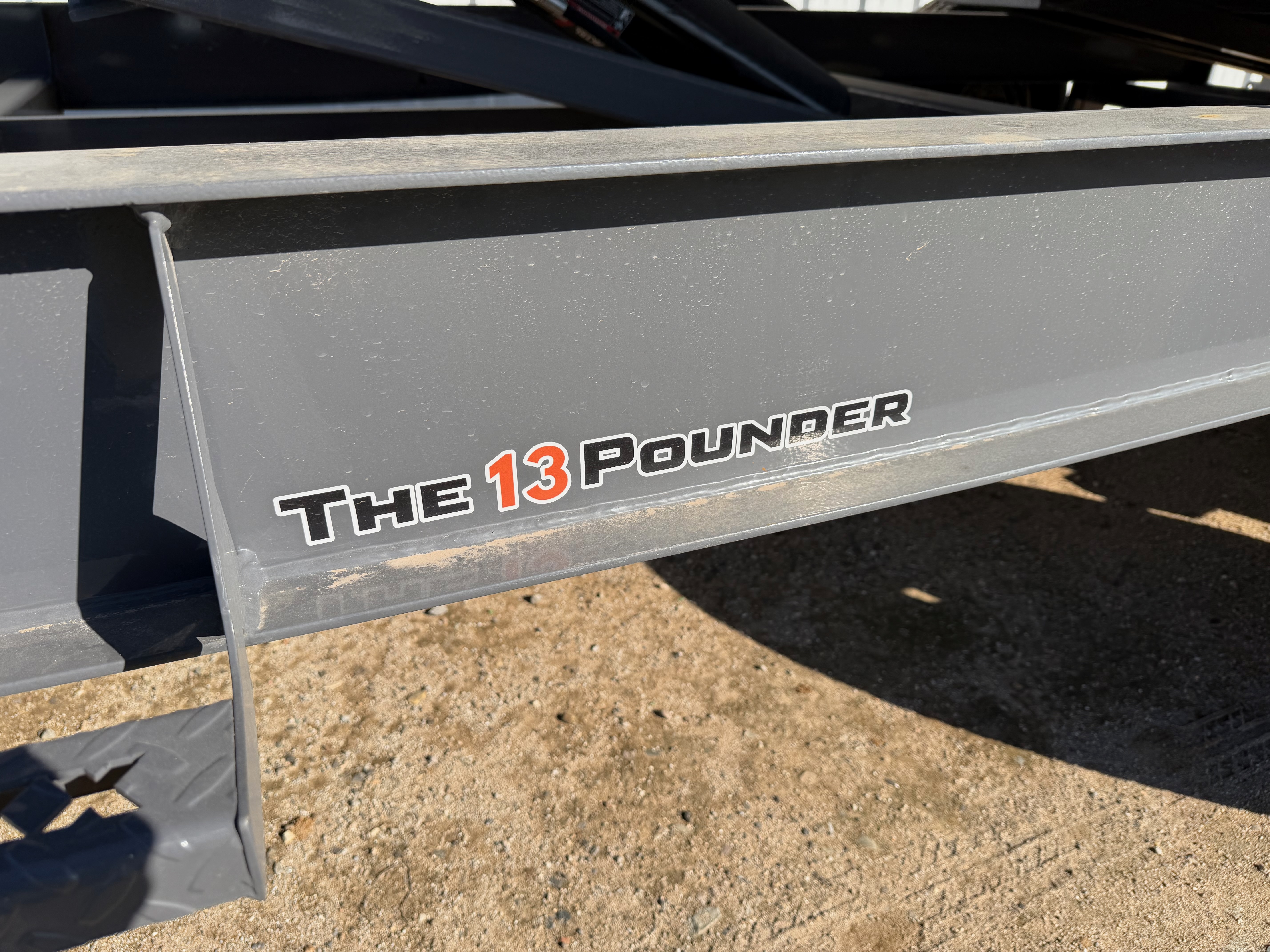

- 8" x 13lbs I Beam Frame
- Engineered I Beam Tongue
- 3" Channel / 16" OC
- 1 Side Wind Drop Leg Jack - 10,000 lbs

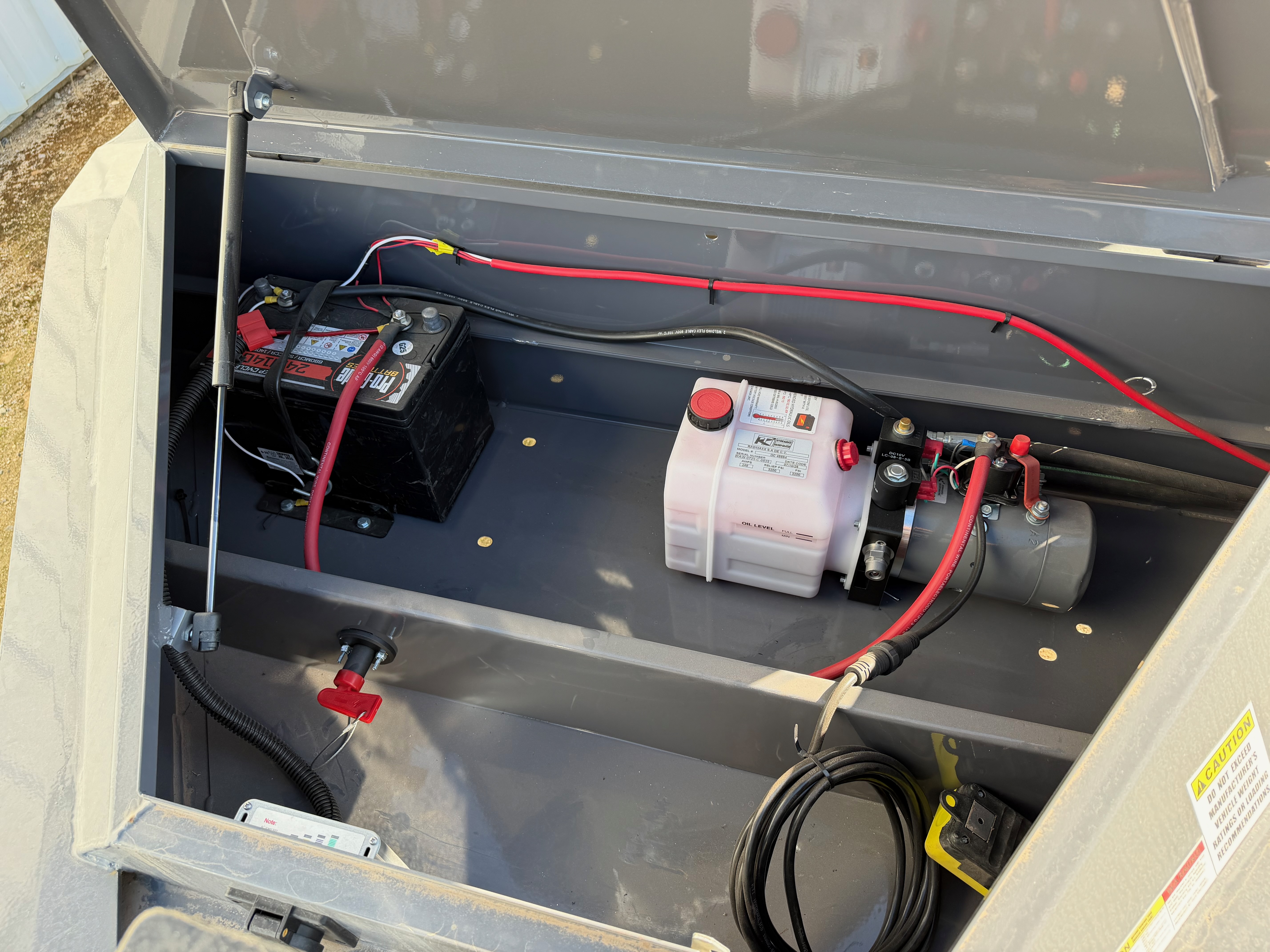

- Tool Box with Pump, Battery & Charger
- Inside Width: 83" - Side Height: 22"
- 10G Formed Walls - Grade 50 8G Steel Floor
- 12G Thread Plate Steel Fenders

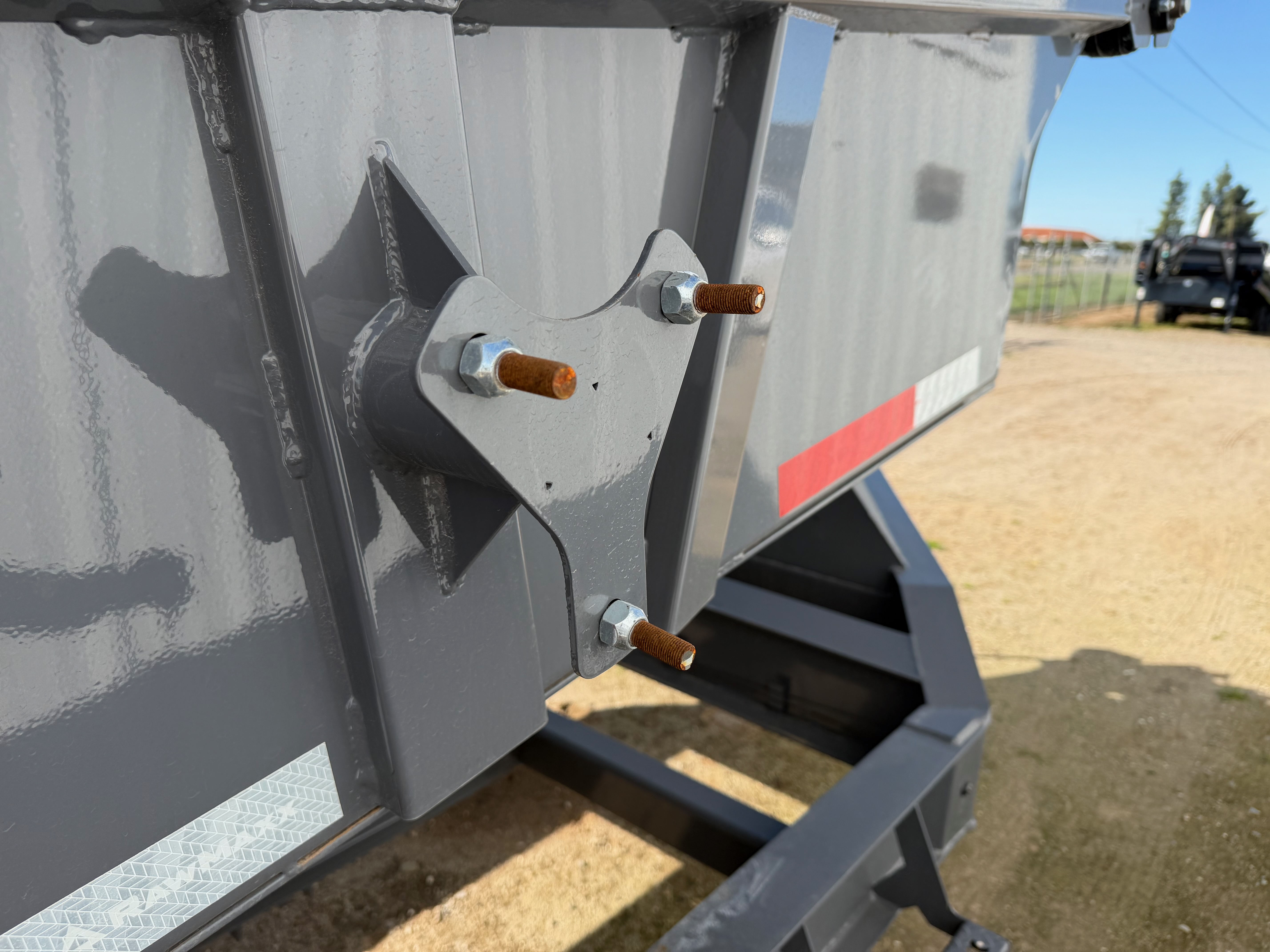

- 3-7/8 x 1-13/16" (ID) Stake Pockets
- 4 D-Rings (Welded Inside Corners)

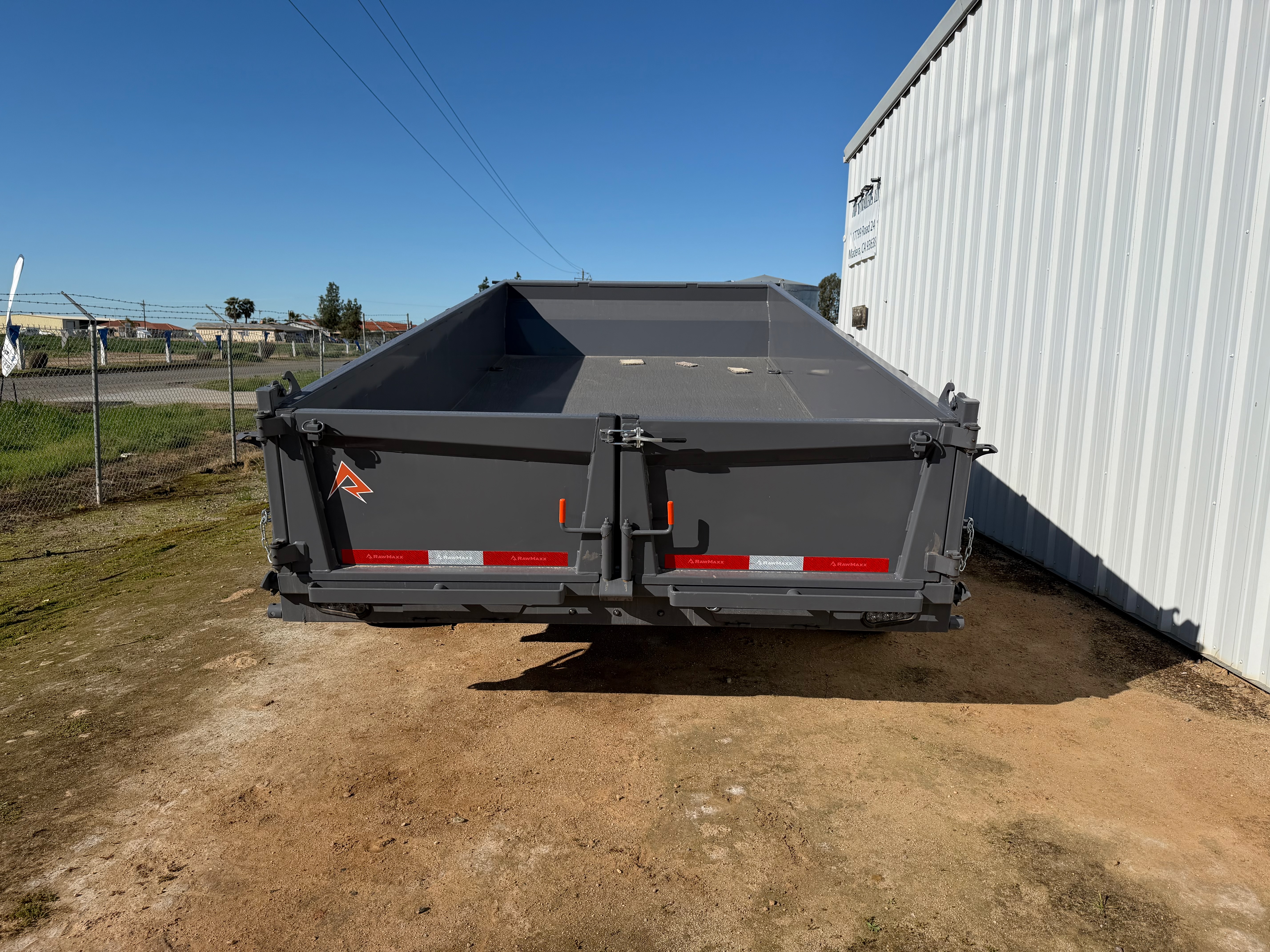

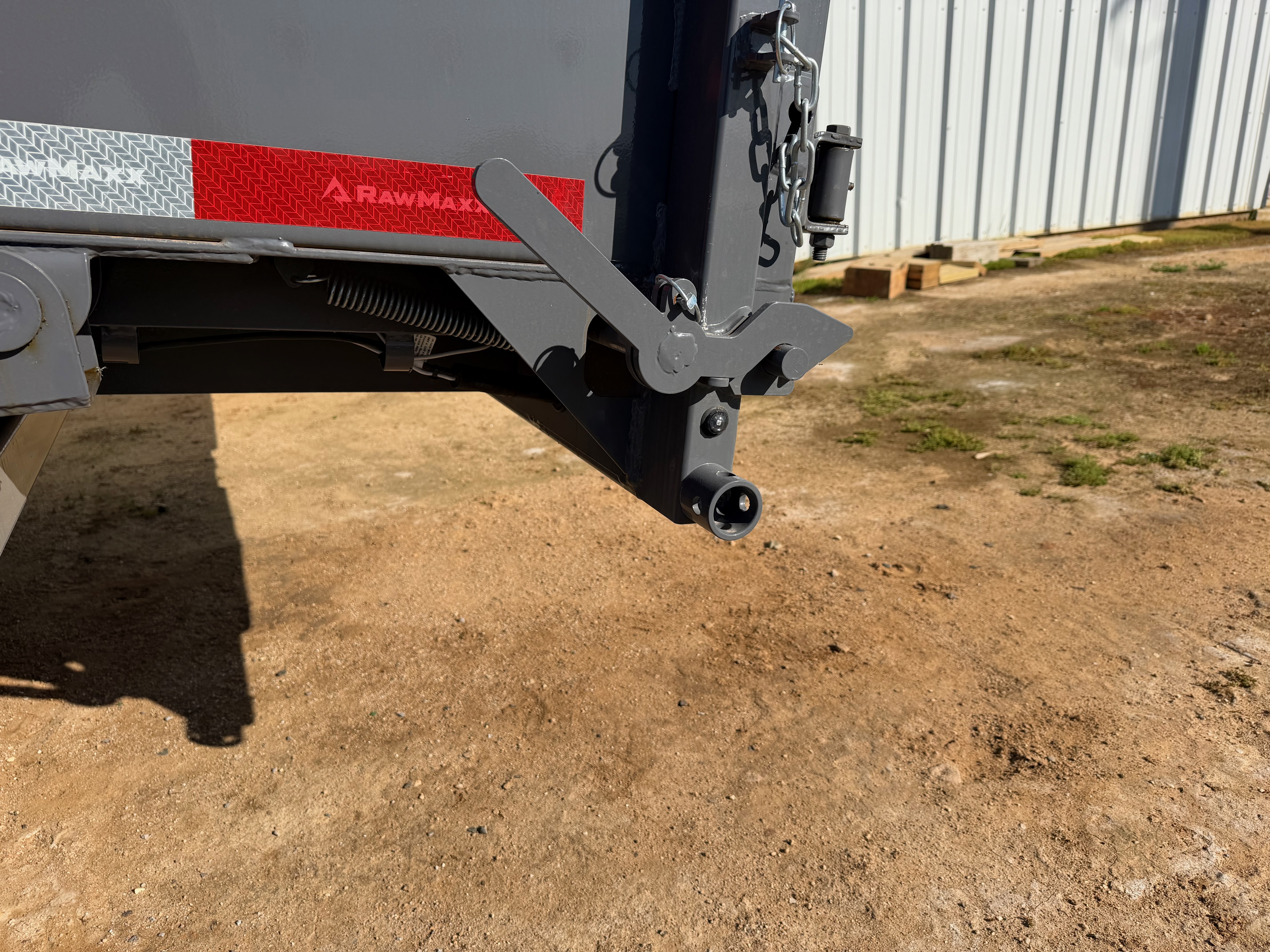

- 3 Way Doors
- 6' Slide-In Channel Ramps
- Hydraulic - Power Up - Down

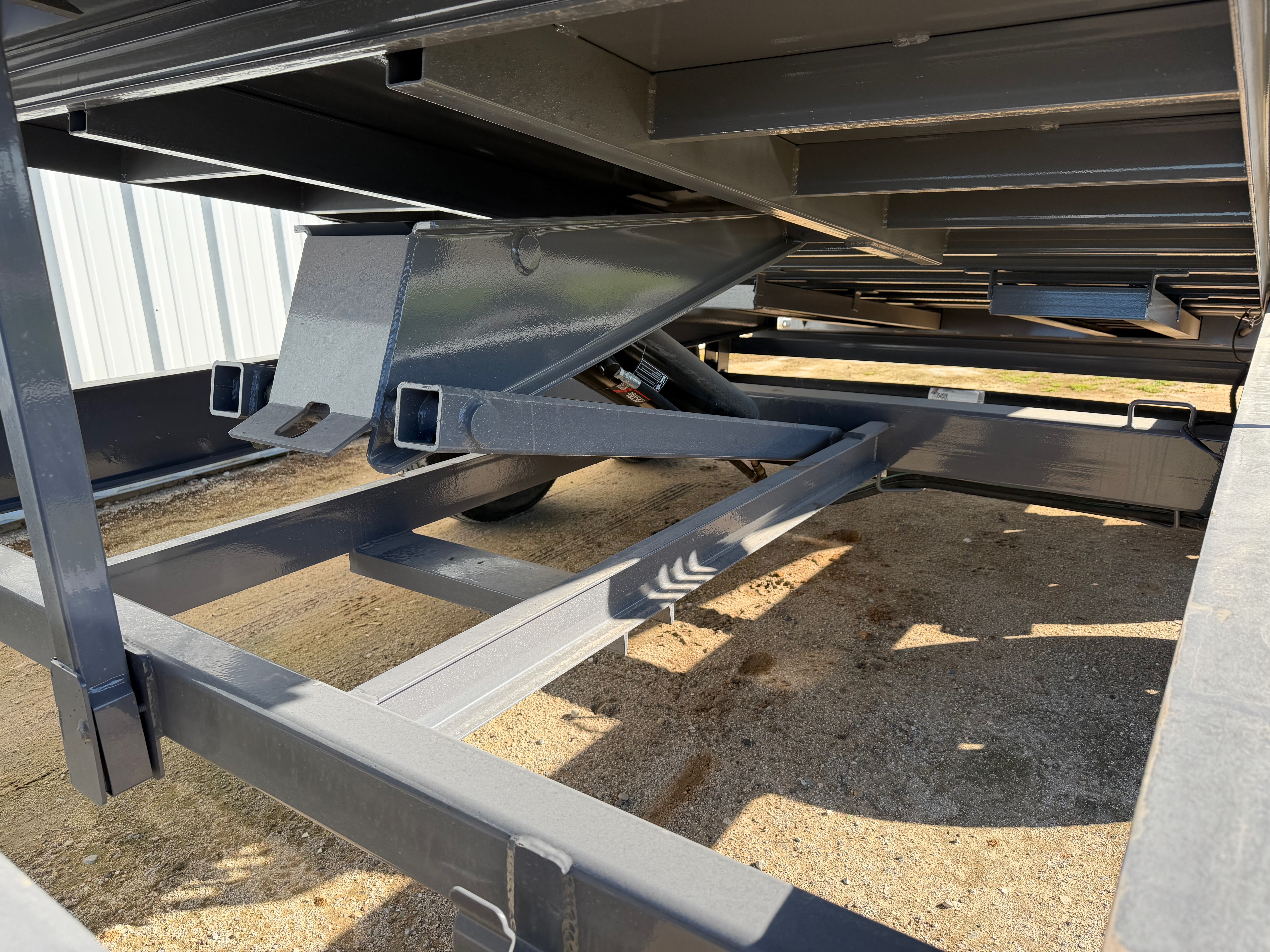

- 6 20 Cylinder Scissor Lift
- Manual Tarp Kit
- 5 - 10 Ply ST235/80R16 Tires
- Spring Suspension
- 2 - 7,000 lbs Axles with Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural / 1 Year Paint
- Financing Available
- CALL OR TEXT (559) 505-3302
Info
Industry
Trailer
Make
RawMaxx
Model
LPX
Trim
14' x 83"
Year
2026
Msrp
13795
Price
12595.00
Stock Number
RM29864
Category
Dump Trailer
Subcategory
Dump Trailer
Condition
New
Location
Madera, CA
Vin
3EVBD1426T1129864
Color
Shadow Grey
Specifications
Length
14ft
Width
83in
Height
Side: 22in
GVWR
14,000 lbs.
Dry Weight
5,091 lbs.
Max Load
10,245 lbs.
Finish
Type: Powder Coat
Warranty
Axle: 5 Year Dexter | Trailer: 3 Year Structural / 1 Year Paint
Coupler
2-5/16” Adjustable Ball Coupler
Tongue
8" x 13 lb. I-beam | Length: 65"
Safety Chains
3/8" G70 Safety Chains
Frame
Main: 8" x 13 lb. I-beam |Type: 5' x 5" x 3/8" Angle | Wiring: All Weather Wiring Harness
Crossmembers
4" x 6" x 3/16" Tubing | 3" Channel / 16" Spacings
Walls
Side: 10G Formed Walls
Floor
7G One Piece Floor
Fenders
12G Diamond Plate Steel
D-Rings
4 D-Rings (Welded Inside Corners)
Gate/Door
Gate: 3 Way Doors
Ramps
6' Slide-In Channel Ramps
Pump
KTI 12V Hydraulic Pump
Controller
14' Cable with Control
Cylinder
5" x 16" Cylinder
Tires
Type: Radial Tires | Size: ST235/80R16
Suspension
Axle Type: Spring | Axles: 2
Brakes
Electric
Lights

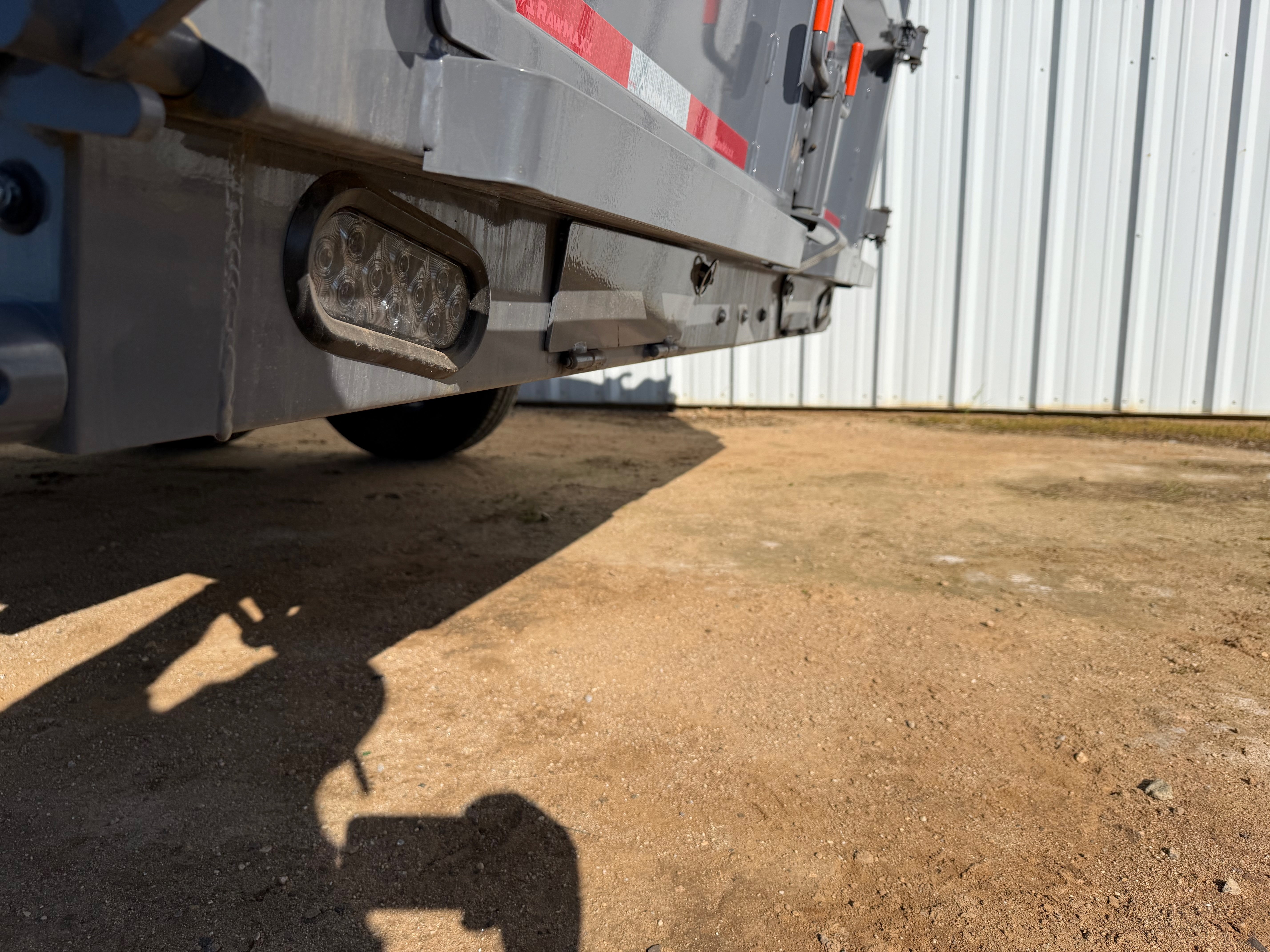

Side Markers: 3/4" LED Bullet Lights | Rear Lights: DOT Approved LED Lights
Battery
27M Deep Cycle Marine Battery
