2026 RawMaxx GDX 14' x 83"- RM29591
Get in Touch
Description

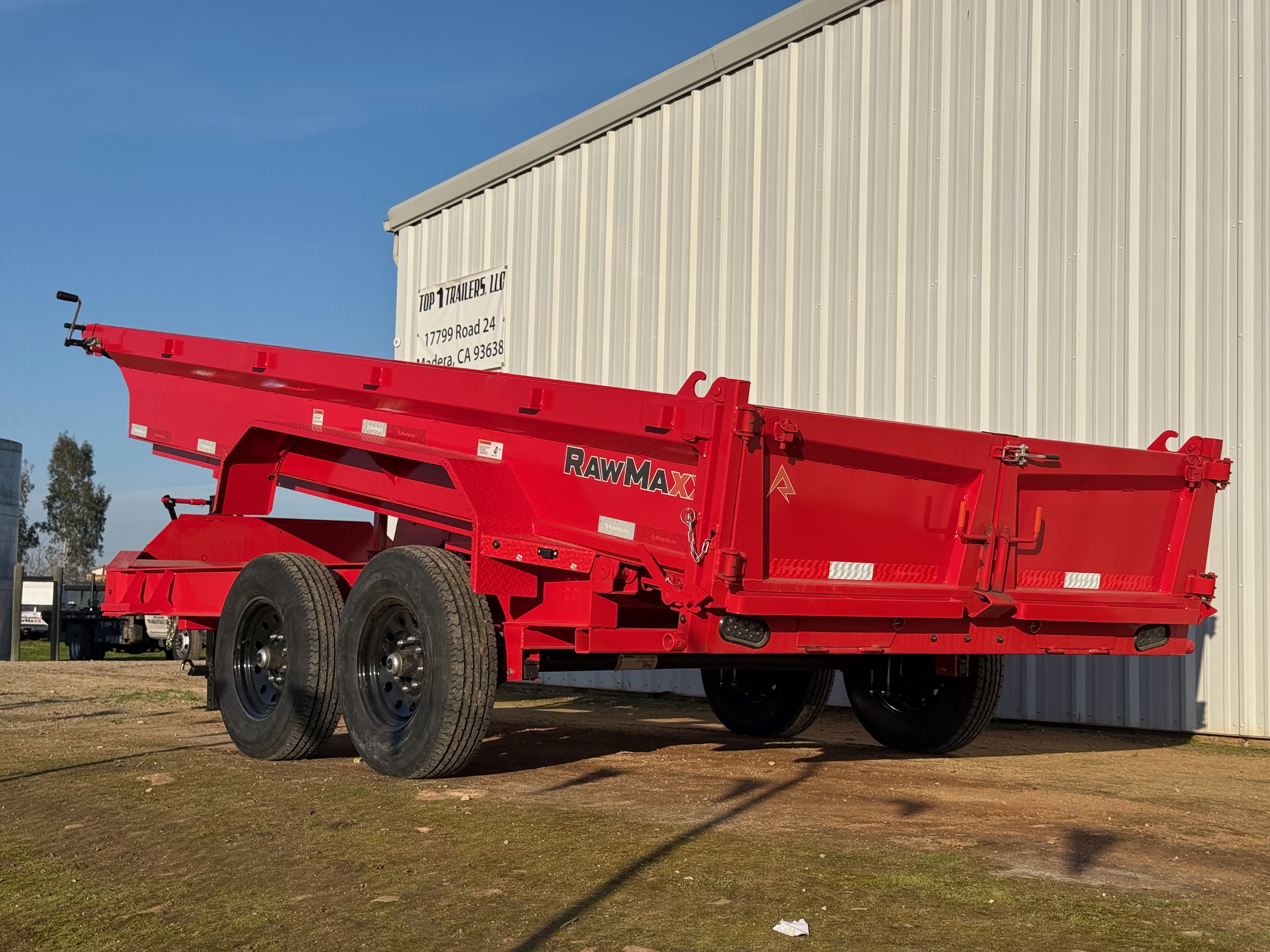

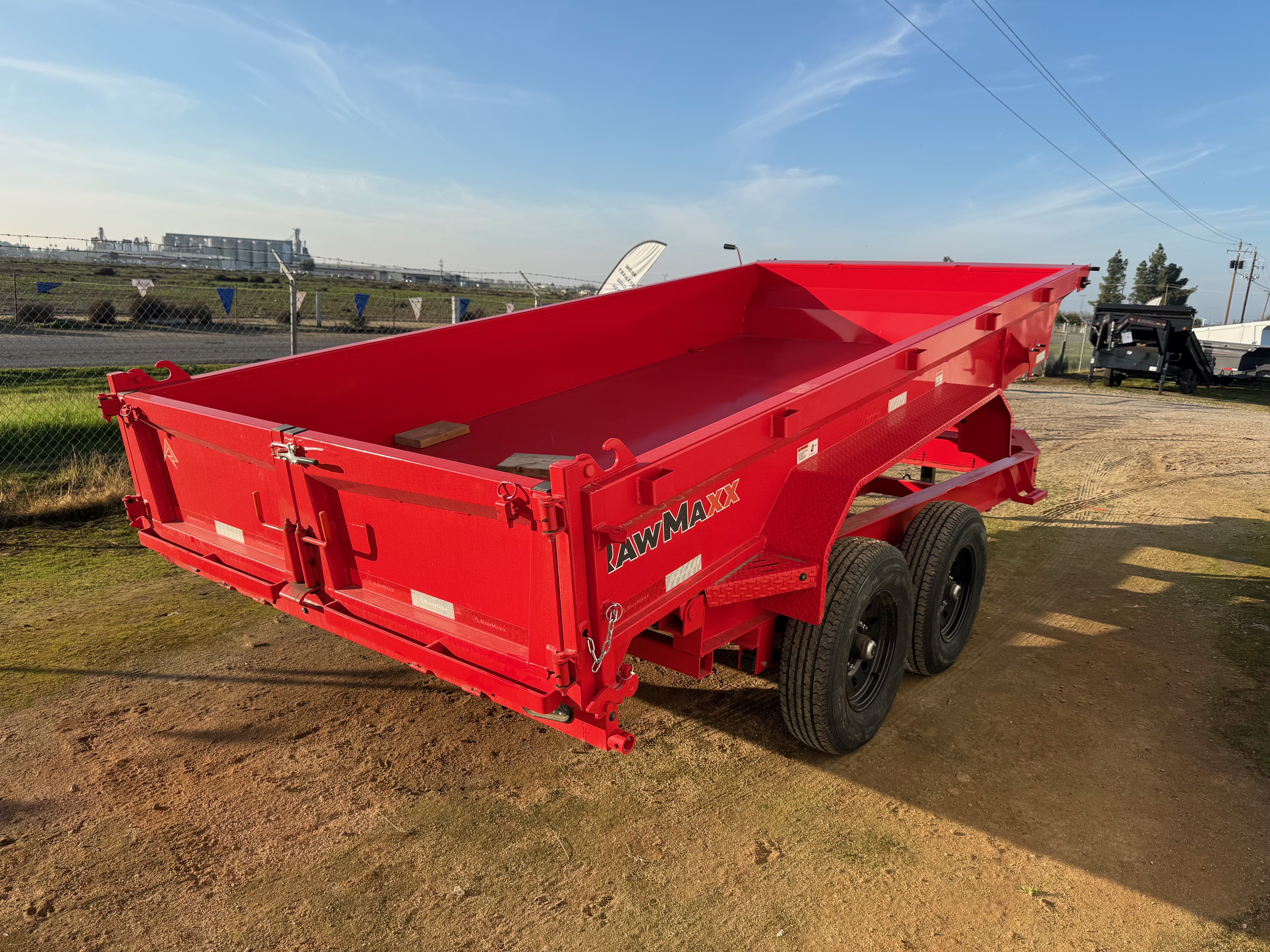

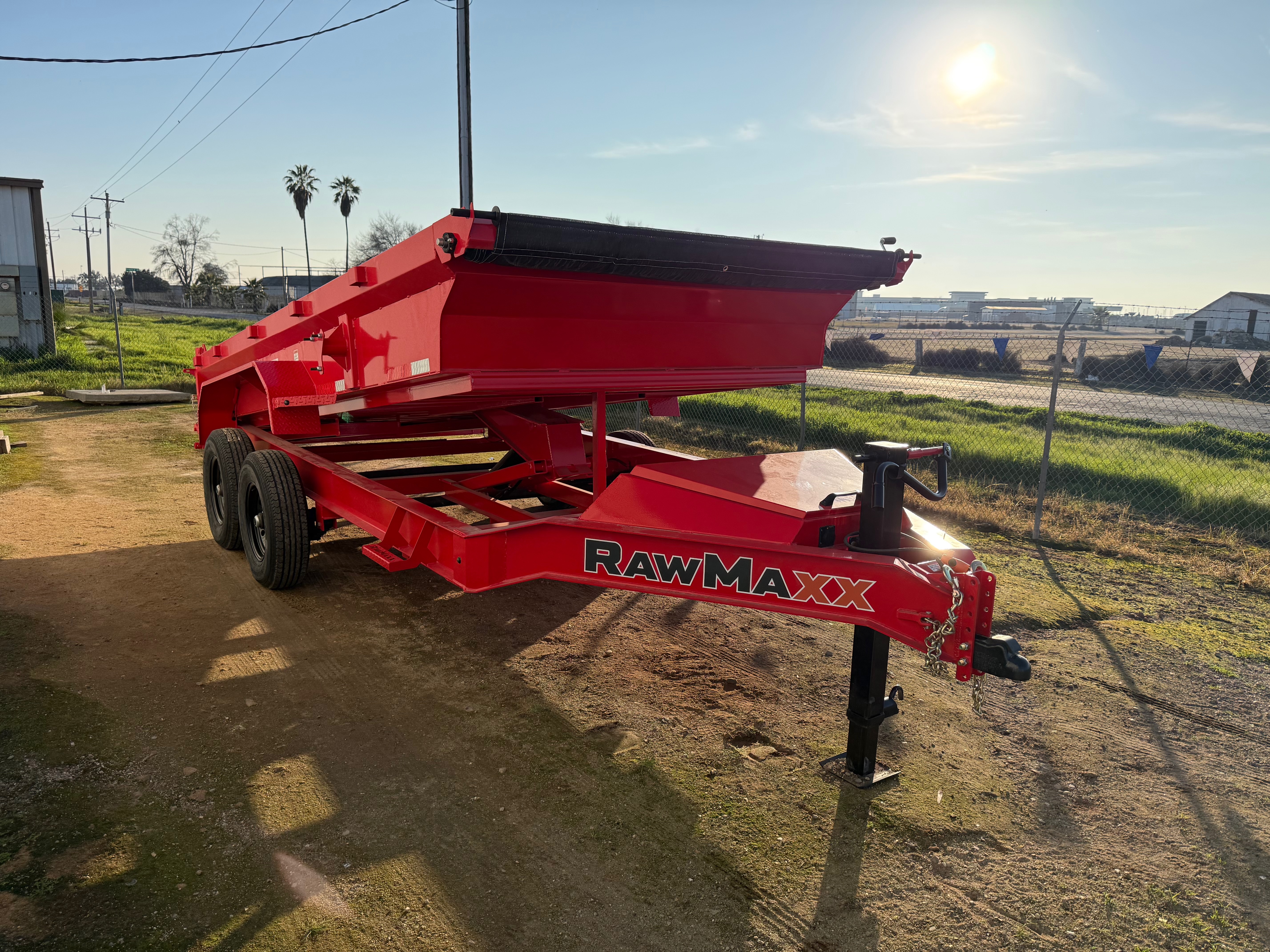

2026 RawMaxx GDX 14' x 83"
GDX Trailer
Introducing the GDX trailer from RawMaxx, designed to handle heavy-duty hauling with confidence. With available sizes of 12′ x 83″ and 14′ x 83″, this trailer boasts impressive dimensions and a weight capacity of 14,000 lbs. It features a durable powder coat finish and a robust 2-5/16″ adjustable ball coupler. The trailer is equipped with a side wind drop leg jack, ensuring stability during loading and unloading. Safety is prioritized with G70 safety chains and an electric breakaway kit. The GDX trailer also offers a reliable hydraulic lift system, sturdy construction, and various optional upgrades for enhanced functionality. Choose the GDX trailer for superior performance and reliability in heavy-duty hauling.
Dealer Notes
7X14 10K DUMP TRAILER, 19IN WALLS
- 2 5/16" Ball Adjustable Coupler

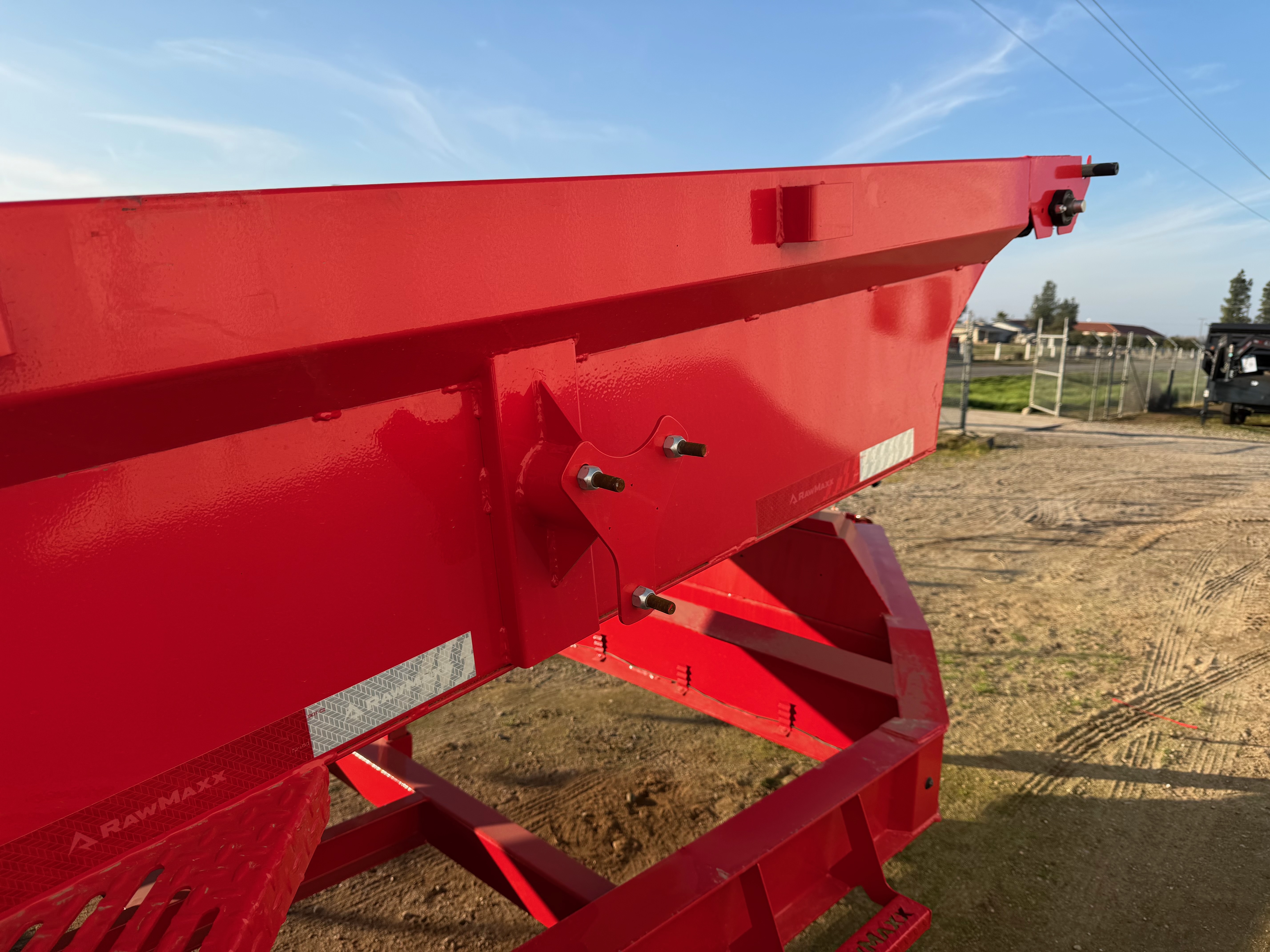

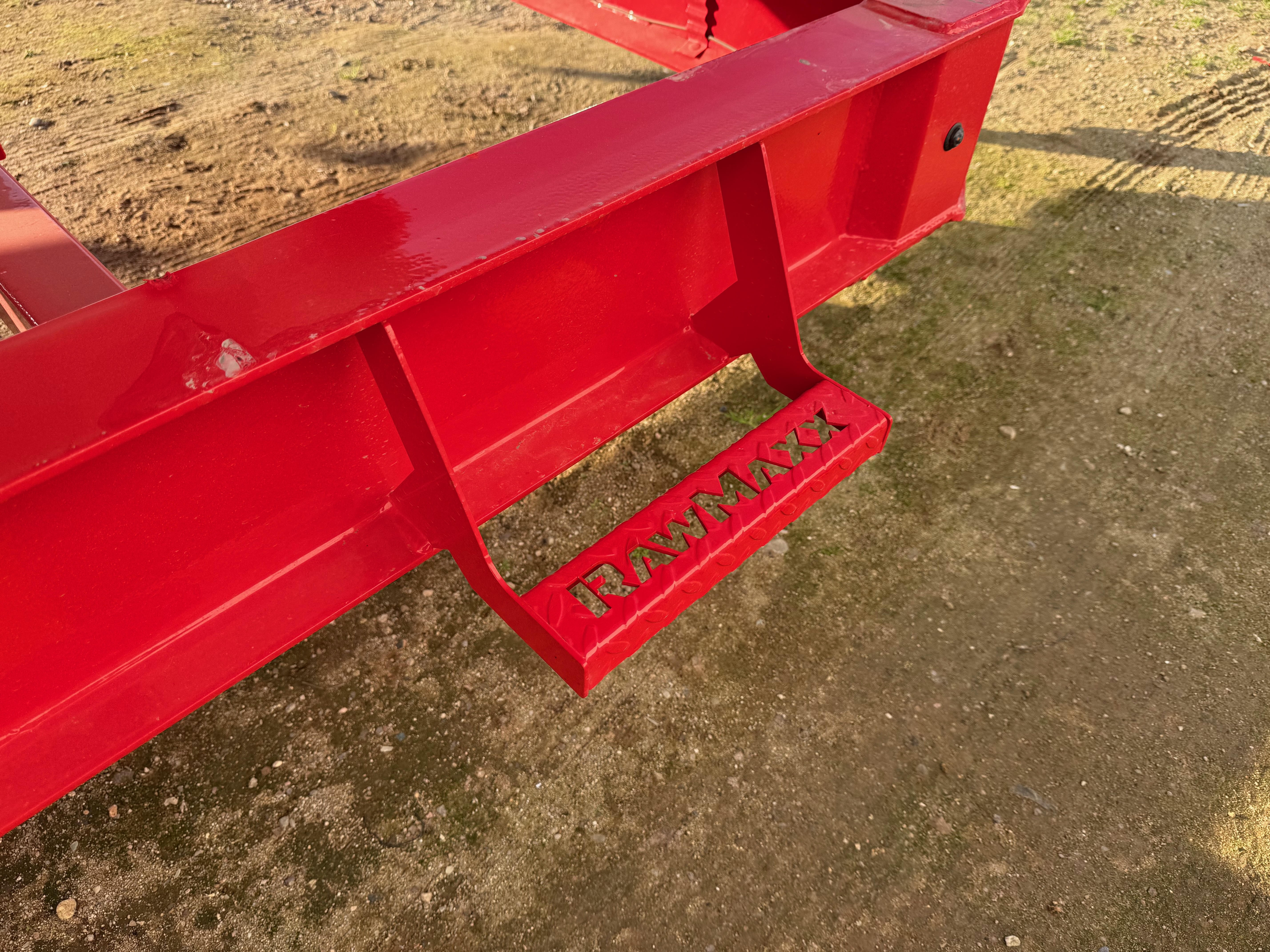

- 8" x 13 lbs I Beam Frame
- Engineered I Beam Tongue
- 3" Channel / 16" OC
- 1 Side Wind Drop Leg Jack - 10,000 lbs
- Tool Box with Pump, Battery & Charger
- Inside Width: 83" - Side Height: 19"
- 12G Formed Walls - 10G Steel 50 Floor
- 12G Thread Plate Steel Fenders
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- 4 D-Rings (Welded Inside Corners)

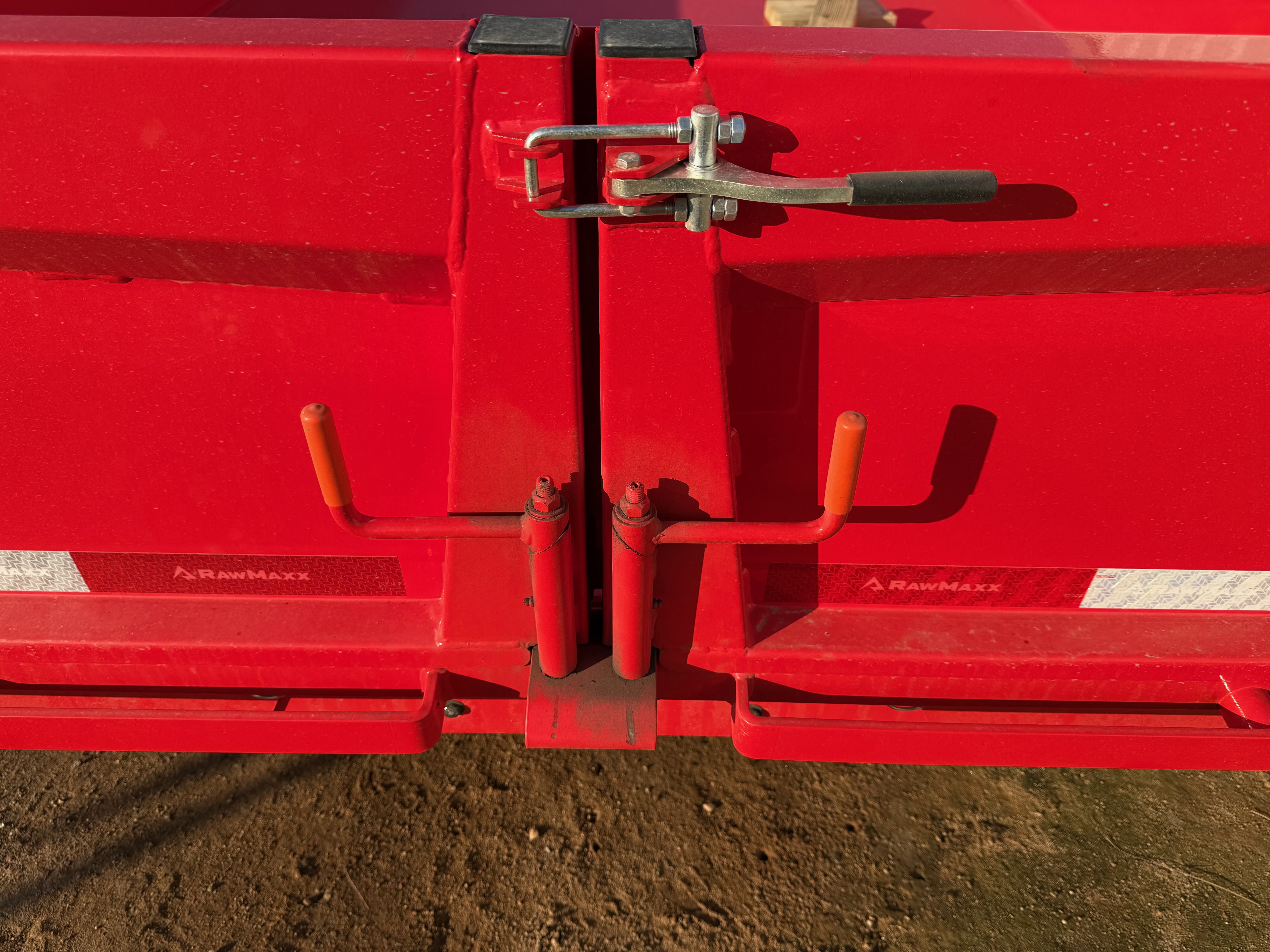

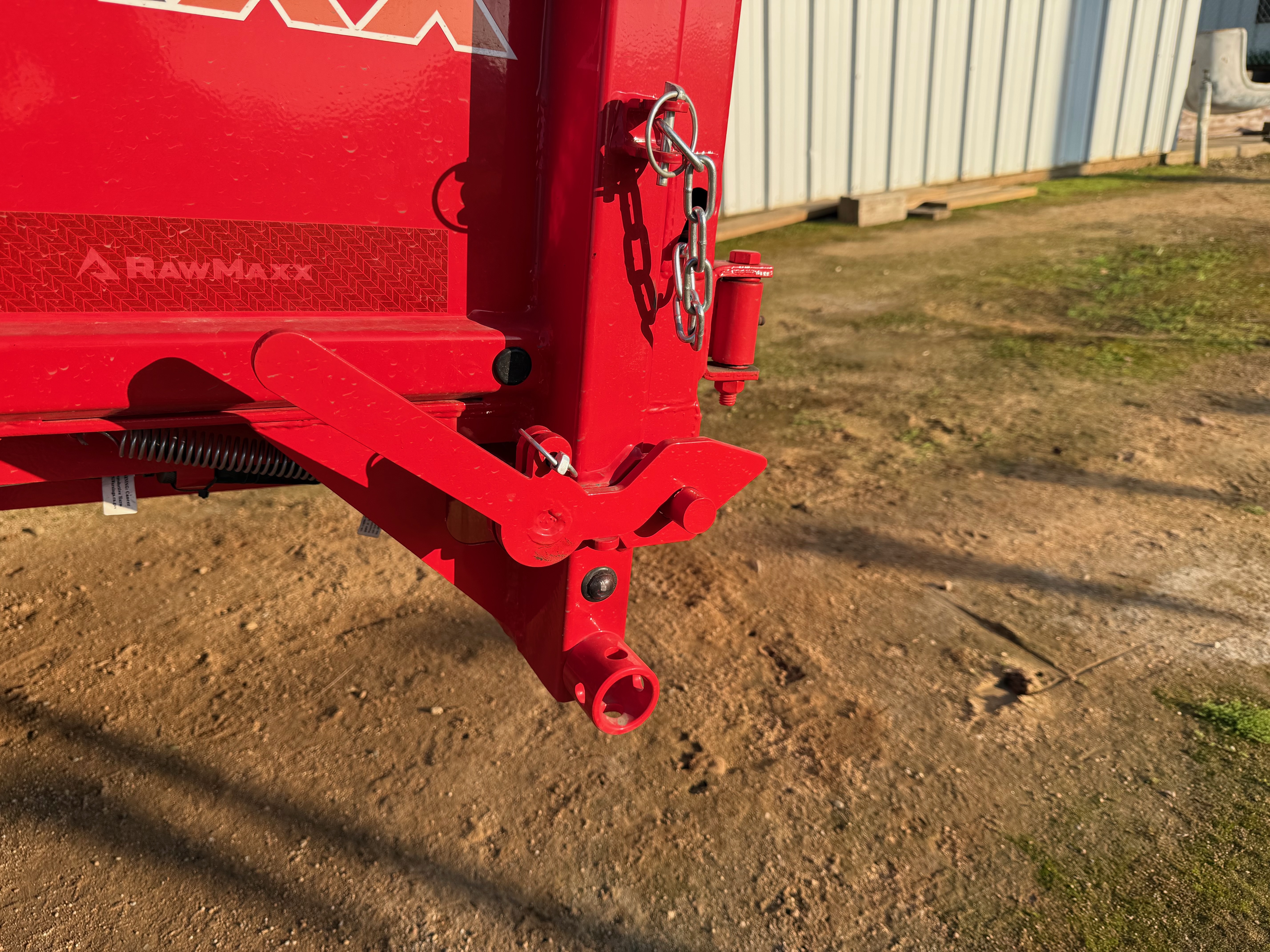

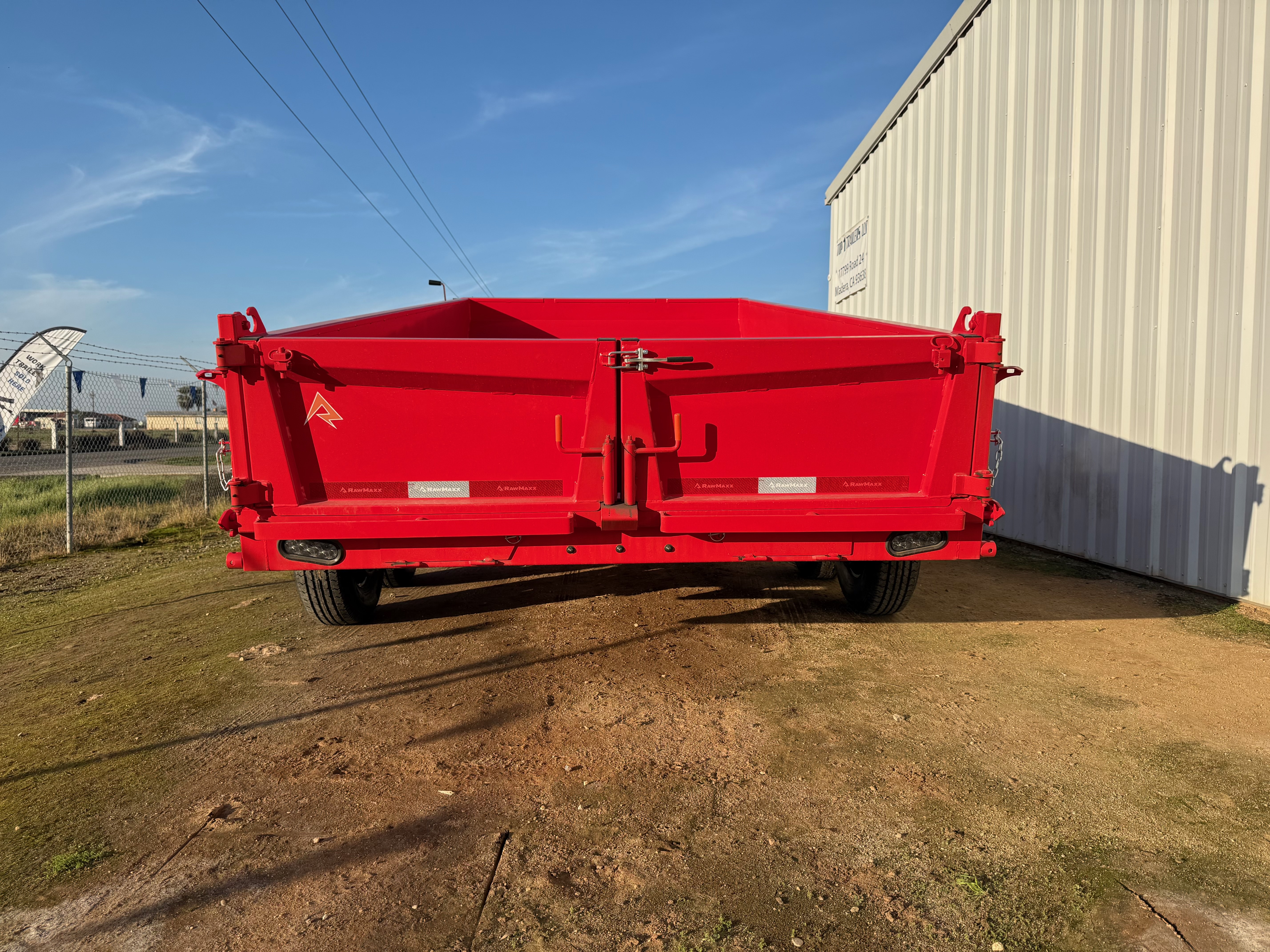

- 3 Way Doors
- Tilt Angle: 41°
- 6' Slide-In Channel Ramps
- Hydraulic - Power Up - Down
- 5 16 Cylinder Scissor Lift
- Manual Tarp Kit

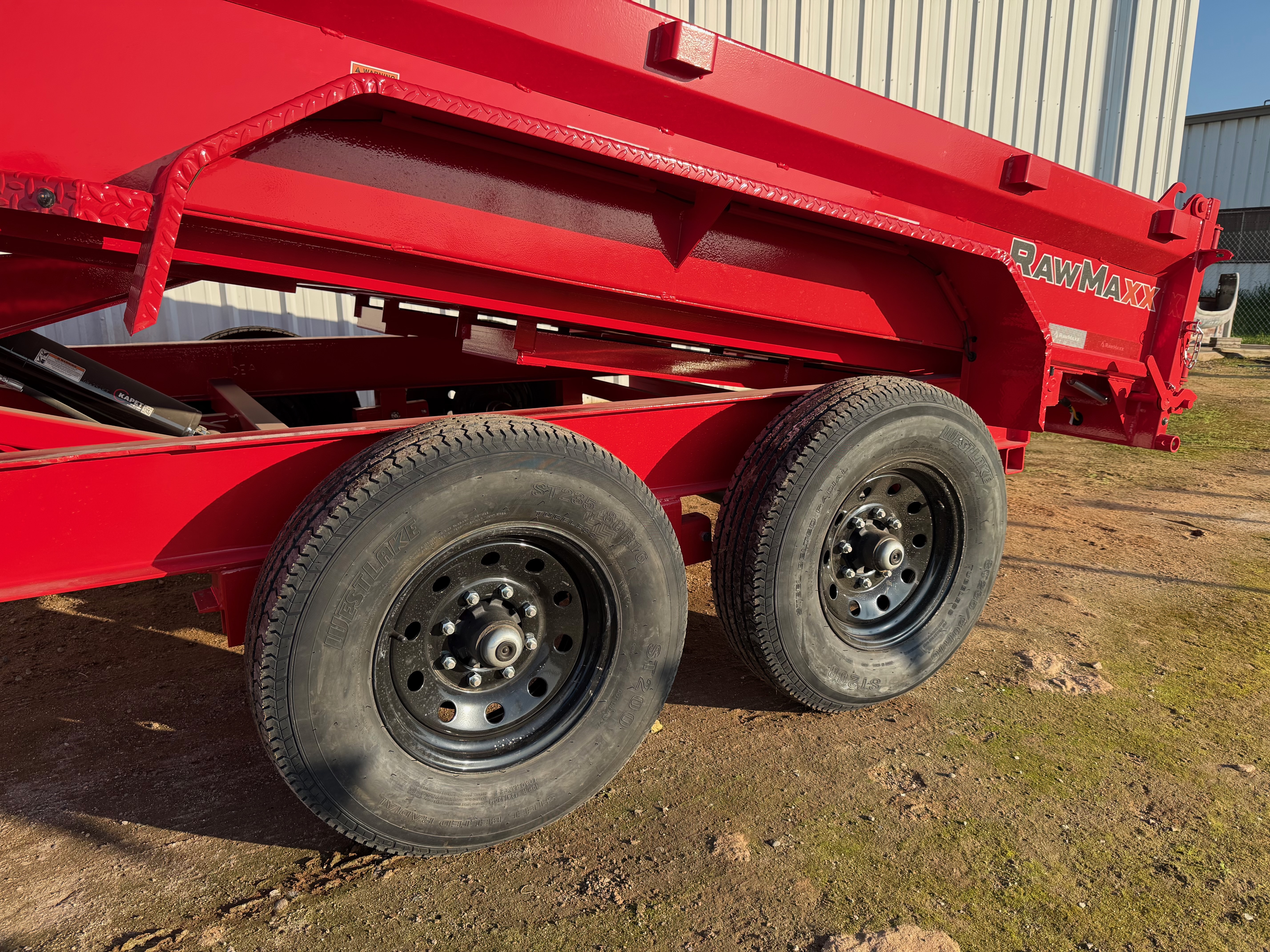

- 4 - 10 Ply ST235/80R16 Tires
- Spring Suspension
- 2 - 7,000 lbs Axles With Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural / 1 Year Paint
- Financing Available
- CALL OR TEXT (559) 505-3302
Info
Industry
Trailer
Make
RawMaxx
Model
GDX
Trim
14' x 83"
Year
2026
Msrp
12195
Price
11595.00
Stock Number
RM29591
Category
Dump Trailer
Subcategory
Dump Trailer
Condition
New
Location
Madera, CA
Vin
3EVBD142XT1126174
Color
Black
Hitch Type
Bumper Pull
Axles
2
Length
14ft
Width
83in
Height
19in
Suspension
Leaf Spring
Wheels
16in
Tires
10ply
Floor
8G Steel
Gvwr
9990 lb
Axle Capacity
7000 lb
Payload Capacity
5382 lb
Specifications
Length
14'
Width
83"| Inside: 83"
Height
Deck: 28" | Side: 19"
GVWR
14,000 lbs.
Dry Weight
4,607 lbs.
Max Load
10,802 lbs.
Finish
Type: Powder Coat
Warranty
Axle: 5 Year Dexter | Trailer: 3 Year Structural / 1 Year Paint
Coupler
2-5/16” Adjustable Ball Coupler
Tongue
8" x 13 lb. I-beam | Length: 65"
Safety Chains
3/8" G70 Safety Chains
Frame
Main: 8" x 13 lb. I-beam | Type: 5' x 5" x 3/8" Angle | Wiring: All Weather Wiring Harness
Crossmembers
4" x 3" x 3/16" Tubing | 3" Channel / 16" Spacings
Walls
Side: 12G Formed Walls
Floor
9G Floor
Fenders
12G Diamond Plate Steel
D-Rings
4 D-Rings (Welded Inside Corners)
Gate/Door
Gate: 3 Way Doors
Ramps
6' Slide-In Channel Ramps
Pump
KTI 12V Hydraulic Pump
Controller
14' Cable with Control
Cylinder
5" x 16" Cylinder
Tires
Type: Radial Tires | Size: ST235/80R16
Suspension
Axle Type: Spring | Axles: 2
Brakes
Electric
Lights

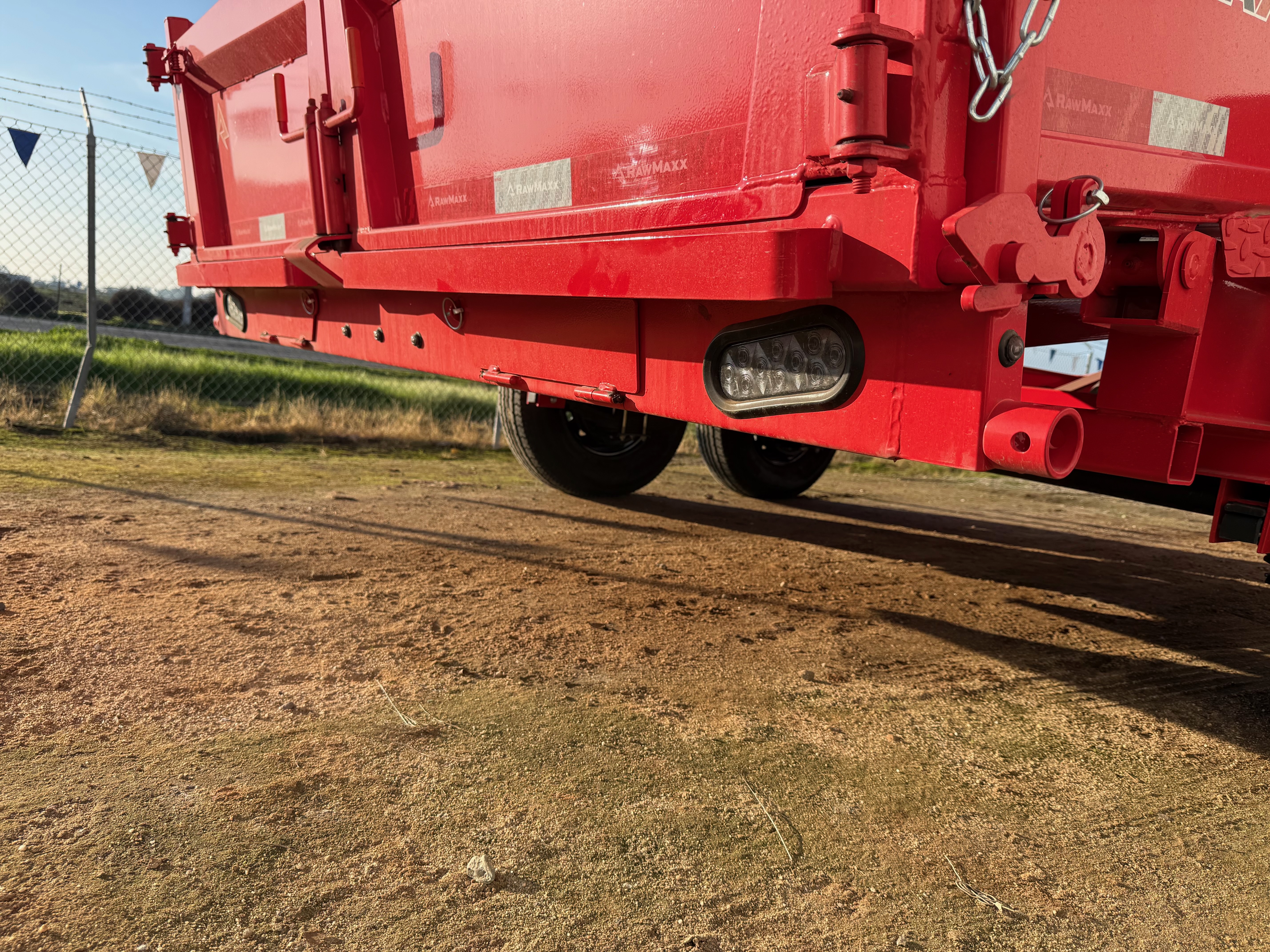

Side Markers: 3/4" LED Bullet Lights | Turn Flashers 2" x 6" Amber Side Turn Lights Rear Lights: DOT Approved LED Lights |
Battery
27M Deep Cycle Marine Battery
